90°公制卡套式直管 DIN 2353,公制螺紋軟管接頭 -利通科技

數據展示

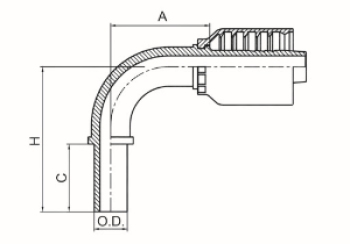

代號 PART NO.		膠管 HOSE BORE		管子外徑	尺寸 DIMENSIONS			備注
編織 BRAIDED	纏繞 SPIRAL	公稱內徑 DN	標號DASH	TUBE O.D.	A	C	H	NOTE
50091-06-04RW	--	6	04	6	31.5	22	48	輕系列
50091-08-05RW	--	8	05	8	35.5	24	55.5
50091-08-06RW	--	10	06	8	36.8	24	57.5
50091-10-05RW	--	8	05	10	35.5	23	53
50091-10-06RW	--	10	06	10	36.3	23	55.3
50091-12-06RW	--	10	06	12	36.3	23	59.8
50091-12-08RW	50092-12-08RW	12	008	12	41.5	23	67
50091-15-06RW	50092-15-06RW	10	06	15	36.9	25	59.8
50091-15-08RW	50092-15-08RW	12	08	15	41.5	25	65
50091-18-08RW	50092-18-08RW	12	08	18	41.5	26	68.5
50091-18-10RW	50092-18-10RW	16	10	18	58	26	73
50091-22-10RW	50092-22-10RW	16	10	22	58	28	76.5
50091-22-12RW	50092-22-12RW	20	12	22	65.5	28	86
50091-22-16RW	50092-22-16RW	25	16	22	78.9	28	91.5
50091-28-16RW	50092-28-16RW	25	16	28	78.9	30	95.5
50091-35-20RW	50092-35-20RW	32	20	35	92.7	36	112.5
50091-42-24RW	50092-42-24RW	40	24	42	111.5	40	123
50091-08-04RW	--	6	04	8	31.5	24	52.5	重系列
50091-08-05RW	--	8	05	8	35.5	24	55.5
50091-08-06RW	--	10	06	8	36.8	24	57.8
50091-10-04RW	--	6	04	10	31.5	26	53
50091-12-04RW	--	6	04	12	31.5	26	57.5
50091-12-05RW	--	8	05	12	34.5	26	60.5
50091-14-06RW	--	10	06	14	36.3	29	63.8
50091-14-08RW	50092-14-08RW	12	08	14	41.5	29	69
50091-14-12RW	50092-14-12RW	20	12	14	66.2	29	83
50091-16-08RW	50092-16-08RW	12	08	16	41.5	30	73
50091-16-10RW	50092-16-10RW	16	10	16	58	30	77.5
50091-20-10RW	50092-20-10RW	16	10	20	58	36	84.5
50091-20-12RW	50092-20-12RW	20	12	20	65.5	36	95.5
50091-25-12RW	50092-25-12RW	20	12	25	65.5	40	98
50091-25-16RW	50092-25-16RW	25	16	25	78.9	40	103.5
50091-30-16RW	50092-30-16RW	25	16	30	80.2	44	109.5
50091-30-20RW	50092-30-20RW	32	20	30	92.7	44	120.5
50091-38-16RW	50092-38-16RW	25	16	38	78.9	50	115.5
50091-38-20RW	50092-38-20RW	32	20	38	92.7	50	126.5

注：實際參數以最新圖冊為準
